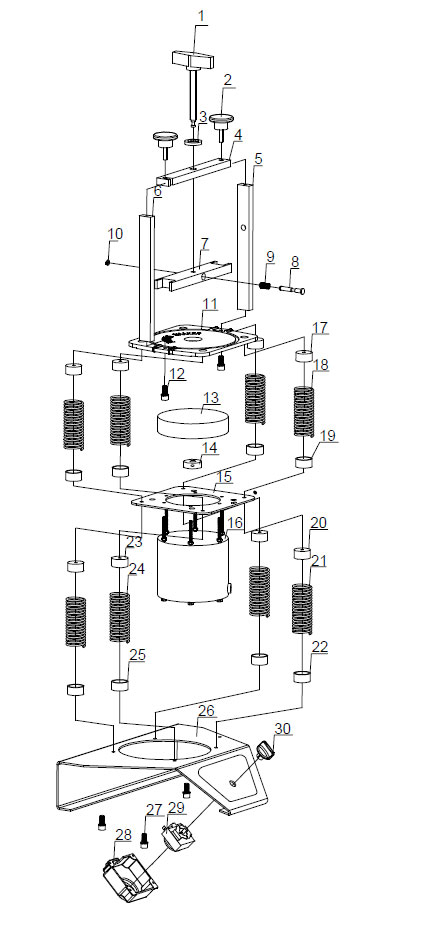

Below is a complete list of replacement parts for the F5 paint shaker. They are
available for purchase at such venues like Ushake.com and select retail stores which
carry the F5 paint shaker. Please contact us with questions about specific replacement
parts: 1-813-920-7259.
1. Holding-Down Bolt
2. Fixing Bolt
3. Jam Nut
4. Adapter Plate
5. Right Side Support Plate
6. Left Side Support Plate
7. Batten
8. Lock Pin
9. Pull Off Spring
10. Spindle
11. Supporting Plate For Paint Can
12. M8 Inner Hexagon Screw
13. Bonnet
14. Eccentric Wheel
15. Fitting Plate For Motor
16. Moter
17. Fixed Block For Spring #4
18. Spring #3
19. Fixed Block For Spring #3
20. Fixed Block For Spring #2
21. Spring #2
22. Fixed Block For Spring #2
23. Fixed Block For Spring #1
24. Spring #1
25. Fixed Block For Spring #1
26. Base
27. M5 Srew
28. Cover For Timer
29. Timer
30. Knob For Timer
